KATO ROBOT DEBURRING SYSTEM

SME4-A-DBR7-P

틸팅(5°) / 신축 플로팅 5mm, 간단한 티칭으로도 가공 가능

YOU TUBE 아이콘
KATO 화낙로봇 디버링
KATO 로봇 디버링

숙련된 작업자의 수작업에 가까운 감각으로 디버링 작업이 가능

5도 틸팅 디버링 툴

+

플로우팅 디버링 툴

플로우팅&틸팅 시스템

공구 회전방향으로 5° 틸팅

상하 방향으로 5mm 플로우팅

틸팅과 플로우팅이 동시

​보다 간편한 가공 최적화 실현

MSI
KATO

ST20-DBR7-SC

KATO DEBURRING HOLDER FOR MCT

신축 플로팅 10mm, 스프링 교환 없이 다이얼로 4단계 플로팅량 조절

KATO

ST20-DBR7-1D

KATO DEBURRING & CHAMFERING HOLDER FOR MCT

신축 플로팅 ±10mm, 홀더 1개로 정면 배면 가공 가능

DBR7-1D 플로팅 +-10mm

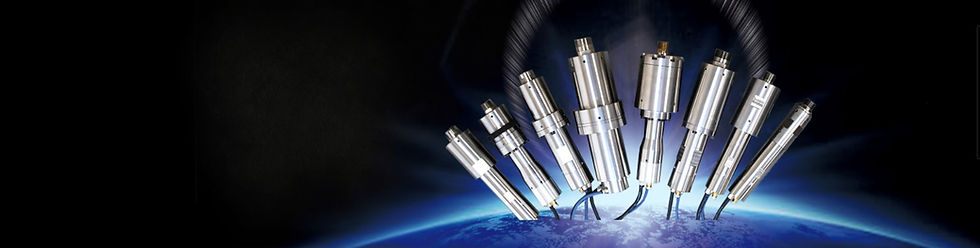

MSI 상단.jpg
MSI MARK

MSI SYSTEMS

provide servies development, design, manufacture, and sale of specialized spindle motors for maching.

MSI 중단_edited_edited.jpg

​스핀들 개발에 진심인 회사

MSI 시스템은 고객의 요구에 맞춘
소형 모터 스핀들의 제공에 특화된 기업입니다.
용도에 맞춘 절삭가공, 디버링가공, 연삭가공의
​각각의 목적에 최적화 된 제품을 제공 드리기 위해 진심인 회사입니다.

MSI 타이틀 위

​용접비드제거 로봇 스핀들

10,000~30,000min-1의 고속고속 회전

300w~1.5kw의 파워 회전

MSI  로봇 용접비드 제거
YOU TUBE 아이콘
TIRENGINEERING FSW
TRIENGINEERING FSW
YOU TUBE 아이콘

Robot-Friction Stir Welding

ROBOT-FSW

FSW Friction Stir Welding was conceived as a joint alternative to fusion welding.Can have various characteristics, such as possible bonding of materials to reduce straightening joints with different deformation less than in recent years particular attention from automotive and aircraft industry.
TRI ENGINEERING combined with robot technology-specific system of this joint approach with great benefits. In addition to the properties that can be achieved by using robots, such as reducing the footprint of the system, to expand the versatility of the line construction adopting one-sided pressure improves high flexibility became available to the variation in the thickness of the panel.

ROBOT FSW의 주요 특장점

아이콘

공간성

설치 면적이 작아 공간 절약을 실현.

아이콘

범용성

라인 구축의 범용성이 향상.

아이콘

확장성

로봇 주행축과의 조합으로 가공 범위 확대 가능.

자동 툴 체인저 내장으로 툴 교환이나 절삭 툴로 교체로 절삭 가공 시스템으로 사용할 수도 활용 가능.

아이콘

생산성

공정 내에 복수 로봇을 설치함으로써, 공정 능력 증대가 가능.

자동 툴 체인저 내장으로 툴 교환이나 절삭 툴로 교체로 절삭 가공 시스템으로 활용 가능.

아이콘

​가공성

가공의 자유도가 높음.

아이콘

정밀성

가압 제어를 채택하여 워크의 판 두께 편차에 대응 가능.

ROBOT FSW 로봇
TIRENGINEERING FSW HEAD
blue star

초음파 디버링 세척기

Blue Star R&D in Japan.

버 제거에 고민하고 계시는 고객님, 이미 많은 각국의 고객사에서 초음파 디버링 세척을 사용하고 계십니다. 각종 금속,

각종 플라스틱, 그리고 복합재. 꼭! 눈으로 확인해 주십시오.

초음파 디버링은 정밀 대량 정밀 생산의 시대를 맞이하는

완전히 새로운 정밀 버 제거 기술입니다.

あなたはまだ本当の超音波をしらない真◦超音波洗浄 超音波バリ取り
White Structure

[넵콘 재팬 2022 전시회 LIVE 중계]

​단조식 초음파 디버링의 한국어 해설

볼룸을 올리시면 한국어 해설을 들을 수 있습니다.

Sphere on Spiral Stairs

Metal deburring example

소형 금속 부품 초음파 디버링 사례

ATL
아이콘

Thermal Deburring - High efficient and unbeatable in cleanliness

아이콘

How does it work?

The Thermal Deburring

process utilizes a precise

oxygen-fuel gas mixture within

a deburring chamber to efficiently burn and oxidize all

burrs. This ensures complete

removal of burrs, even from

complex geometries or hard-

to-reach areas, at temperatures

up to 3,300 °C.

아이콘

Materials



We can treat: steel, cast iron, aluminum, brass, die casting parts and all thermoplastics

like PA, PE, PTFE, PUR, and PMMA. While most metals can

be processed, some materials

like magnesium and titanium

have limitations due to their

specific properties.

아이콘

Custumer benefit

- Remove all burrs in one cycle
- Even hard-to-reach edges
- Fast processing for large volumes
- Cost-effective, low energy use
- Burr roots are seals
- For bulk and single parts

아이콘

Use Case

How to deburr a hydraulic

manifold in 1 or 2 minutes? 95%

of all manufacturer's choose

TEM for its efficiency and

reliability, making it the go-to

solution in automotive,

defence, medical and

mechanical engineering sectors.

ATL 열디버링 가공물
ACRITECH MARK

Product information of machine Tools

Electrolytic chemical deburring machines/electrolytic grinding machine.
Design and manufacture of various industrial machines

Product introduction

MACHINE TOOL EQUIPMENT GROUP designs and manufactures electrolytic chemical deburring machine,
electrolytic grinding machime, and vario
us industrial machines.
아크리테크 전해디버링 디버링
ECMB

Example of processing for ECM

아크리테크 전해디버링 디버링
hirata eco mark

HIRATA EcoElectric Series

Connecting beyound with one cable
hirata cover2.jpg

Purpose

Search by Purpose

HIRATA PURPOSE

Lineup

Search from Lineup

아이콘

EcoElectric Stop

Solenoid type to stop a workpiece (pallet).

YOUTUBE 아이콘
아이콘
히라타 전동스토퍼 EST
아이콘

EcoElecric DC Converyor

Drive unit is built into the frame. Compact and easy to maintain.

아이콘
ECV50C S
아이콘

EcoElecric DC Roller Conveyor

For transporting wide-ranging items, such as plastic box and carton box.

아이콘
ECV50C
아이콘

EcoElectric Cylinder

Rod type ball screw actuator

아이콘
ECY
아이콘

EcoElectric Traverser

Device to slide conveyors on the rail, allowing people and carts through.

아이콘
ETV600
아이콘

EcoElectric Turn Unit

Device to slide conveyors on the rail, allowing people and carts through.

아이콘
ETR90
아이콘

EcoElectric Turn Unit

Slider type actuator with ball screw or belt method

아이콘
ESL30
아이콘

EcoElectric Accumulate stop

Capable to hold multiple pallets and release one by one.

아이콘
EAS100
아이콘

EcoElectric Lift

Lifting type long stroke actuator

아이콘
ELF46
아이콘

DCDC Converter

Converts unstable power supply to stable 24V.

아이콘
HDC24
